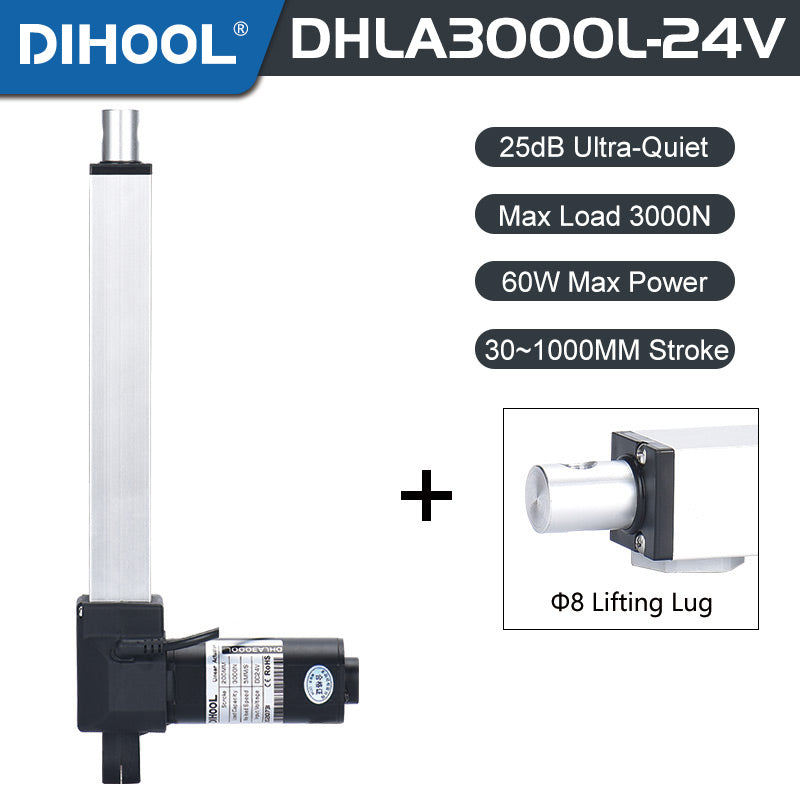

Electric Linear Motion Actuator 24V DC Motor 3000N 660LB Load - DHLA3000L

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 10 13 15 20 30 40 52 66 88 Load Pull Capacity(N) 3000 1500 1200 1000 800 600 400 300 250 150 Load Push Capacity(N) 3000 1500 1200 1000 800 600 400 300 250 150 Self-locking Capacity(N) 3500 1800 1500 1200 1000 800 600 400 300 200 Stroke Length 30mm-1000mm (≥500mm stroke, Max load 2000N) Operating Temperature -20°C~+60°C Limit Switches Built-in Operating Frequency 10% max 2min. continuous use Inner Tube Aluminum tube Lead screw Type Type T OUTLINE DIMENSION DRAWING Optional Configuration
