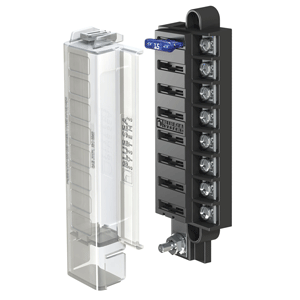

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

ST Blade Compact Fuse Blocks - 8 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits:8 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage:32V DC Mounting: #8 Screw (M4) Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm.
