Allen-Bradley 1756-IF8I

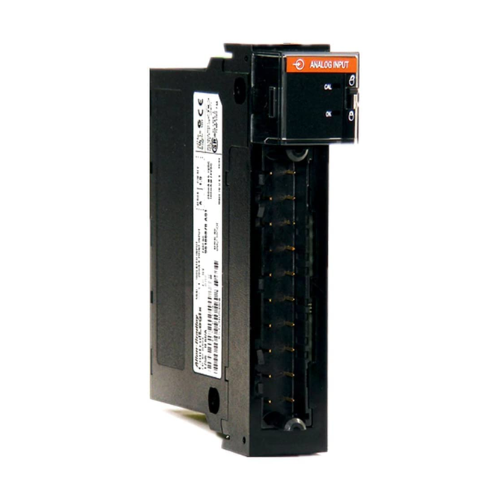

Allen-Bradley 1756-IF8I | 8-Channel Isolated Analog Input Module (Voltage/Current, 24-Bit, Loop Power) Overview The Allen-Bradley 1756-IF8I is a high-precision analog input module for ControlLogix systems, offering 8 isolated differential input channels for voltage or current signals. Featuring 24-bit resolution, notch filtering, and a software-configurable internal loop power source per channel, this module delivers superior accuracy and flexibility in industrial process and control applications. Its fully isolated inputs ensure minimal noise interference, while the 36-pin interface allows easy wiring and secure connections. Key Features 8 Individually Isolated Analog Inputs – Each channel is fully isolated from others Voltage & Current Input Support – User-selectable input type 24-Bit Resolution – High-resolution signal acquisition Differential Inputs – Reduces common-mode noise Notch Filter – Suppresses unwanted signal frequencies Internal Loop Power Option – Software-configurable per channel 36-Pin Terminal Interface – For secure and organized wiring Hot-Swappable & ControlLogix Compatible Technical Specifications Catalog Number: 1756-IF8I Number of Inputs: 8 isolated differential channels Signal Types: Voltage (±10V), Current (0–20 mA, 4–20 mA) Resolution: 24 bits Input Isolation: Channel-to-channel and channel-to-backplane User-Selectable Loop Power: Yes (internal or external per channel) Notch Filter: Built-in, software-configurable Accuracy: ±0.03% of full scale (typical) Backplane Current: ~350 mA @ 5.1V DC Connector: 36-pin RTB (removable terminal block) Operating Temperature: 0°C to +60°C Mounting: ControlLogix chassis Compatible Software: Studio 5000 Logix Designer Applications Precision Process Control – Ideal for instrumentation and analog sensors Machine Automation – Accurate input for motion and position feedback Loop-Powered Sensors – Internal power simplifies installation Electrical Isolation Needs – Prevents cross-talk and signal degradation Why Choose the 1756-IF8I? 24-bit high-resolution input with full isolation per channel Built-in loop power saves space and wiring time Ideal for clean analog signal acquisition in complex environments Order Now Available and ready to ship globally.
