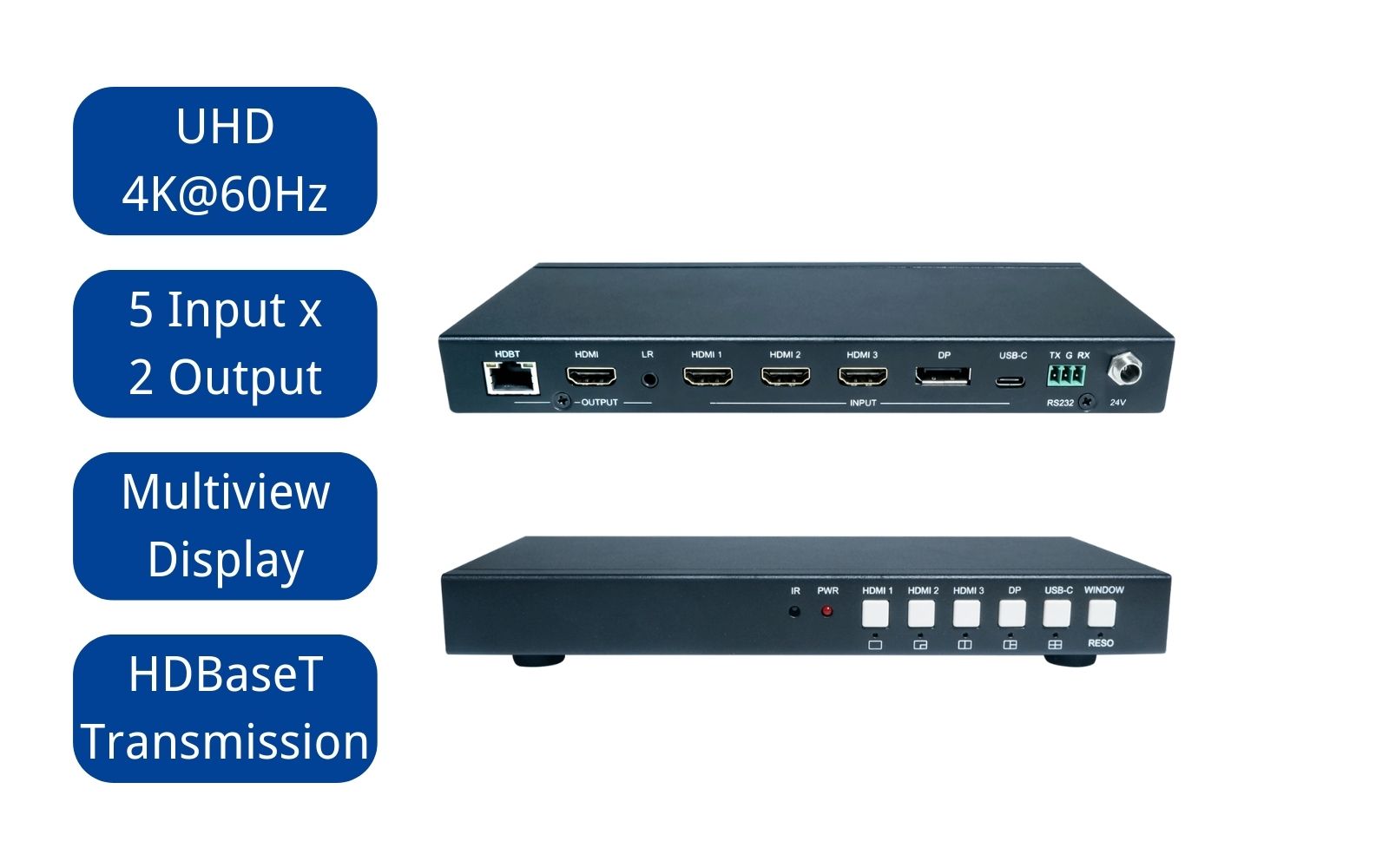

DDMALL AGS-PS512 5IN 2OUT 4K Seamless HDMI Video Switcher for Multi-window Display
Overview UHD Video Switcher: Up to 5 inputs(3*HDMI, 1*DP, 1*USB-C, USB-C only for video passing through), 1*HDMI output, 1*HDBaseT mirror output, and 1*3.5mm Analog audio output. HDMI2.0 and DP 1.2 input are supported. Input and output resolution up to 4K@60Hz, support downscaling 4K resolution to 1080p for output(enable/disable downscaler function). EDID is supported with multiple selectable EDID modes. Multiple Windowing Placements: the video switcher supports single video full-screen display, PIP, PBP, 3-window, and 4-window display. Window position and size can be adjusted for PID and PBP display; Window size and placements can be adjusted for 3-window and 4-window display. Up to 20 scenes can be saved as presets for fast call display. Seamless Switching: seamless switching for single video full-screen display effortlessly; near-real-time switching for PIP, PBP, 3-window, and 4-window display in about 1.5s delay. Freedom of Audio: Support multiple audio types for input including LP
