DDMALL AGP-UHD-809 HDMI Matrix Switch, Industrial-Grade HDMI Matrix 4K@60Hz IN/OUT
www.ddmalltech.com
Electronics / Components

DDMALL AGP-UHD-809 HDMI Matrix Switch, Industrial-Grade HDMI Matrix 4K@60Hz IN/OUT

$1,899.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

DDMALL

View Store

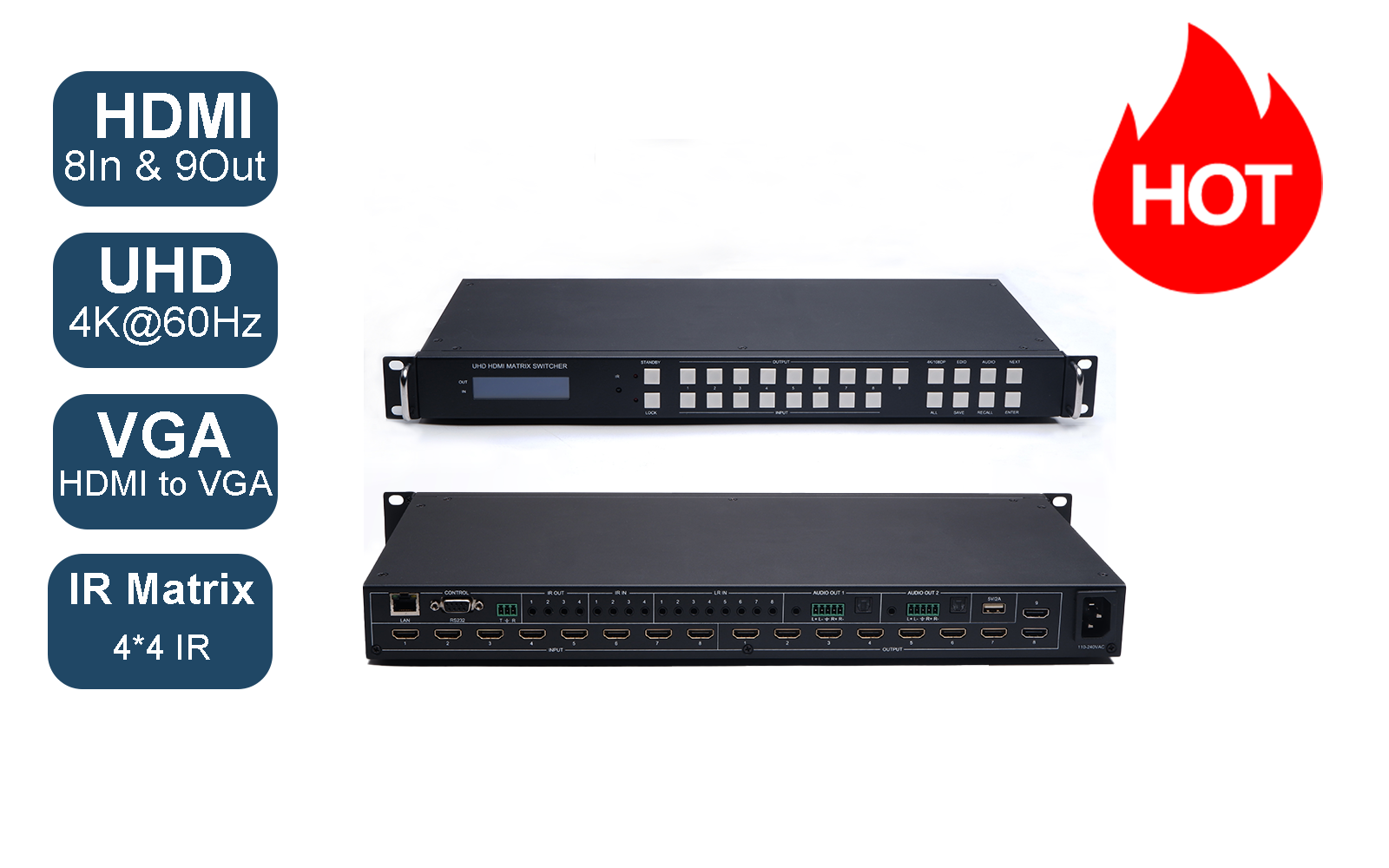

Overview  True UHD HDMI Matrix:  HDMI 2.0 (HDCP 2.2); max. 8 HDMI inputs in 4k@60Hz and max. 9 HDMI outputs in 4K@60Hz without compromizing on the switching performance. support downscaling for display. Support 2K upscale to 4K for display. Support 8*3.5mm audio inputs. Support 2*audio outputs(3.5mm audio and LR audio supported) HDMI to GVA Supported: with HDMI to VGA converter or cable, the HDMI matrix allows VGA signals pass through in ultra high-definiation. Audio Embedding & De-embedding: the 4K HDMI matrix switcher allows to extract audio and embed external 3.5mm LR audio for output. IR Matrix: support 4*4 IR matrix to perform IR remote control. Multiple Control Methods: The matrix supports front panel control, IR remote control, RS232 control, Ethernet/Web control. More Features: HDCP2.0, HDCP2.2, EDID, CED supported; video preview supported; 4K-HANDLE(4K/1080P supported); IR remote control, panel control, RS232/485 control, Web UI control. Key Features  HDMI 2.0; HDCP2.
