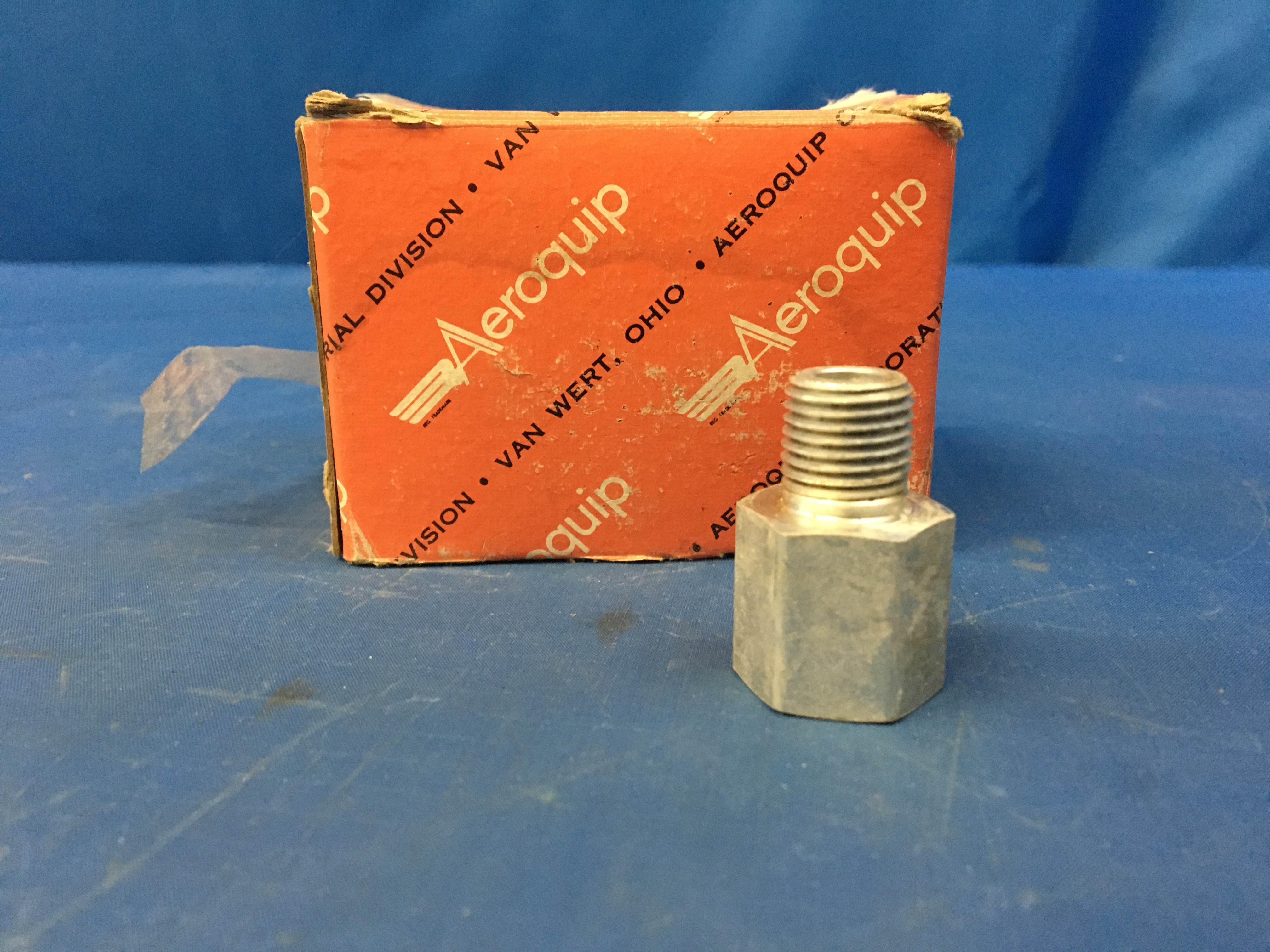

Eaton Aeroquip 12267787-2 Pipe To Boss Straight Adapter NSN:4730-01-073-4309

Pipe To Boss Straight Adapter NSN: 4730-01-073-4309 | Model: 12267787-2 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also adapter bushing and coupling, pipe. NSN Properties and Flags NATO Stock Number 4730-01-073-4309 DEMIL Yes - ITAR Controlled Thread Class 2b 2nd end Connection Style Plain (pipe) 1st end Connection Type Threaded internal boss 2nd end Thread Size 0.562 inches 1st end Nominallength 1.359 inches Special Features ISUS-ED-ON3-9300 Material Steel Thread Series Designator Unf 2nd end
