Extron TLP Pro 1225TG 12" Tabletop TouchLink Pro Touchpanel

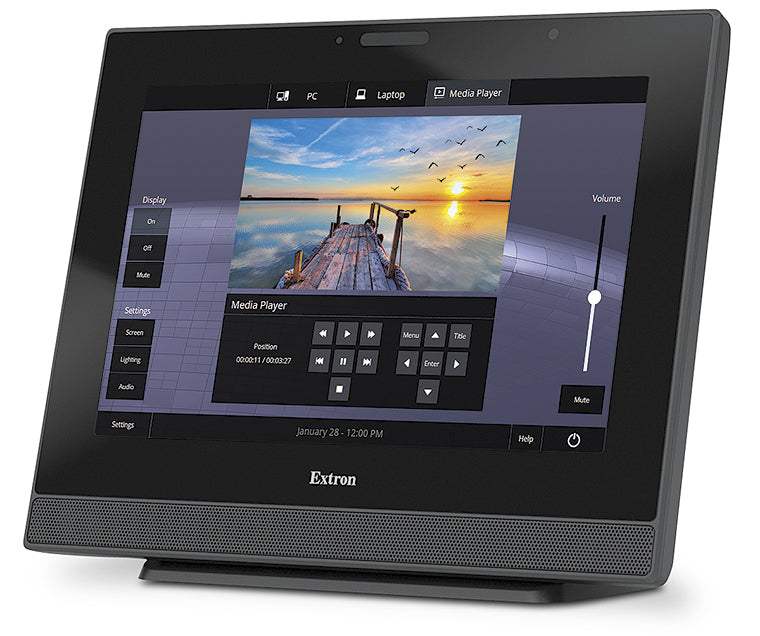

The Extron TLP Pro 1225TG is a 12” tabletop touchpanel with a capacitive, edge-to-edge glass touchscreen. It is designed to control video, audio, lighting, shades, HVAC, security, and other systems within virtually any environment. It is equipped with a 1280x800 resolution capacitive touchscreen and provides a vibrant look and a very responsive control surface. The TLP Pro 1225TG features video preview inputs that support high resolution HDCP-compliant video from HDMI sources and Extron XTP devices. Its stylish design and powerful features make it ideal for control applications that require a fully customizable tabletop touchpanel with a large control surface and multi-source video preview. The TLP Pro 1225TG works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable. All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements. Features 12” capacitive touchscreen with 1280x800 resolution and 16 million colors — Vibrant, edge-to-edge glass display with a more responsive control surface. Ultra-fast quad-core processor for quick page loads Full-motion video preview and monitoring with HDMI and XTP inputs Works with any Extron control processor and HC 400 Series system PoE+ compatible — Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies. Built-in speakers provide stereo audio — For video preview and audible feedback from button presses. Light sensor adjusts screen brightness as the ambient room lighting changes Configurable red and green status light indicate a room's availability or call status Two high speed USB 2.0 ports — For future expansion. 3.5mm headphone jack provides local audio out from the touchpanel Automatic clock synchronization allows touchpanel to display the accurate time and date Energy-saving features:- Adjustable sleep timer puts touchpanel into sleep mode- Motion detector wakes touchpanel Contemporary design that complements the aesthetics of any environment Sits on a tabletop or installs on a VESA mount — Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 100mm mounting pattern standard is used for VESA mounting. The optional back box, BB 700M, can be used where local codes require a rear metal enclosure Kensington lock support — Allows the touchpanel to be locked to a table or other flat surface. Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. Supports the optional SMA-1 Swivel Mount Adapter Supports the Extron Control App Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations. Specs Also see our Specs in PDF format TLP Pro 1225TG Display Screen type TFT Active matrix color LCD Size 12.1" (30.7 cm), measured diagonally Resolution 1280x800 (WXGA) Pixel density 124.75 PPI Aspect ratio 16:10 Color depth 24-bit, 16.7 million colors Transparency 8 bit alpha channel Brightness 340 nits (cd/m2) Contrast 1000:1 Backlight LED Viewing angle ±85° horizontal, ±85° vertical Touch screen Capacitive Memory RAM 2 GB Storage 8 GB XTP – Interconnection between transmitter and receiver Termination standard TIA/EIA T568A or T568B Signal transmission distance 330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better) Cable requirements Solid conductor, 24 AWG or better Cable recommendations 400 MHz bandwidth, STP (Shielded Twisted Pair) Video input Resolution range 640x480 @ 60 Hz through 1920x1200 @ 60 Hzincludes 480p, 576p, 720p, 1080p, and 2K NOTE Interlaced sources are not supported. Quantity/type 1 HDMI (HDCP compliant)1 XTP® Connectors 1 female HDMI type A1 female RJ-45 (shared with Ethernet interface) Horizontal frequency 18.75 kHz to 75 kHz Vertical frequency 24 Hz to 75 Hz Standards DVI 1.0, HDMI 1.4, HDCP 1.4 Audio sampling rate 48 kHz Video processing HDMI pixel data bit depth 8, 10, or 12 bits per channel; 165 MHz pixel clock Colors 1 billion (10 bit processing) Ethernet Connectors 1 female RJ-45 connector (shared with XTP video input) Data rate 10/100Base-T, half/full duplex with autodetect Protocols DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP Default settings Link speed and duplex level: autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1 Software Configuration software Global Configurator Plus and Professional, GUI Designer Programming software ControlScript Programming Control apps Extron Control Resource management software GlobalViewer Enterprise Utilities Toolbelt, Embedded Web page Sensors Motion sensor On/off Light sensor Auto/manual USB Quantity/type 2 high-speed USB 2.0 Connectors 2 USB type A receptacles USB standards USB 2.0, USB 1.1, USB 1.0 compatible USB data rates Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) Audio output – Speaker Speaker output 2 Stereo, 90 dB Max. SPL @ 0.1m Frequency response 400 Hz to 20 kHz, ±5 dB Playback format(s) Container format WAV (Microsoft RIFF) Encoding LPCM (uncompressed) Bit depth Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit Sampling rate Up to 192 kHz Audio channels Mono or stereo Audio output – Line level Quantity/type 1 stereo, unbalanced Connectors 1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND) Impedance 50 ohms unbalanced Gain error ±0.1 dB channel to channel Nominal level -10 dBV (316 mVrms) Maximum level (Hi-Z) >+8.2 dBV unbalanced at 1% THD+N Maximum level (600 ohm) >7.1 dBm unbalanced at 1% THD+N General Power supply Not included Power input requirements 12 VDC or Power over Ethernet (802.3at, class 4) Power consumption — Power injector (PI 140) with XTP Device 22.5 watts Device and power injector 26.4 watts Power consumption — Power supply (PS 1230) Device 20.3 watts Device and power supply 23.8 watts Auxiliary power output USB 5 VDC, up to 275 mA on a single port: up to 275 mA total on both USB ports Ambient temperature/humidity Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensingOperating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing Cooling Convection, vents on rear top and sides Thermal dissipation — Power injector (PI 140) with XTP Device 72.1 BTU/hr Device and power injector 85.3 BTU/hr Thermal dissipation — Power supply (PS 1230) Device 64.5 BTU/hr Device and power supply 76.5 BTU/hr Mounting Furniture or wall mount Set on tabletop or mount to optional VESA D 100 mm panel mount kit Adjustment ranges Tilts through a 40° range Enclosure type Plastic Enclosure dimensions 9.8" H* x 12.8" W x 8.4" D(249 mm H* x 324 mm W x 212 mm D)(Maximum height and depth depend on angle of tilt.) Product weight 10.98 lb (4.98 kg) Regulatory compliance BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, and WEEE Product warranty 3 years parts and labor; touchpanel display and overlay components are covered for 1 year NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (6306-D5) Shipping Dimensions and Weights Part # Height Width Depth Weight 60-1788-02 17.5" (44.5 cm) 12.5" (31.8 cm) 12.5" (31.8 cm) 13.68 lbs (6.21 kg)
