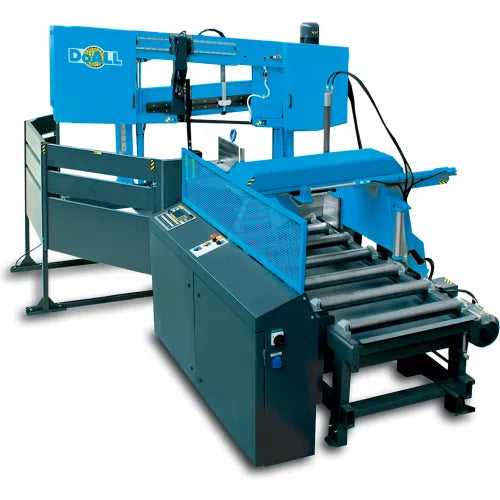

DoAll Dual Column Dual Miter Band Saw - 19" x 30" Machine Cap

Description The DoALL DCDS-750NC high production, horizontal StructurALL, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 19x30? (480x750mm) rectangular cutting capacity and 20? round capacity. Also classified as a double column, dual swivel, the DCDS-750NC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-750NC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-750NC is the ideal machine for a fabricator cutting multiple angles in the same work piece. Brochure Features Siemens saw control with touch display Digital read out of cutting angle Work light Hydraulic band tension Feed rate indicator Automatic feed control Automatic guide arm setting Pulley-driven band brush Variable vise pressure control - set of 2 Hydraulic angular position and lock Safety covers and 3 panel work area surround Flood coolant Tool kit Complimentary DoALL cutting fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick Specifications   Cutting Capacity Round Tube: 20" (500mm) Cutting Capacity Round Solid: 15-3/4" (400mm) Cutting Capacity Rectangle: 19 x 30" (480x750mm) Index Single Stroke Min-Max: 0.12-78.7" (3-2000mm) Auto Index Multiple Stroke Max: 394" (9999mm) Nesting Capacity (Min to Max): 3.3" (85mm) up to 29.5 x 10.2" (750x260mm) Miter Cutting: 60° left and right Capacity Round at 45°: 19.7" (500mm) Capacity Rectangle at 45°: 19.7 x 18.9" (500x480mm) Capacity Round at 60°: 13" (330mm) Capacity Rectangle at 60°: 13 x 18.9" (330x480mm) Remnant Length Drop: 4.7" (120mm) Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm) Max. Blade Length: 256" (6500mm) Band Speed:65-328 fpm (20-100mpm) Band Drive Motor: 7.5 HP (5.5 kW) Hydraulic Pump: 3 HP (2.2 kW) Hydraulic Tank Capacity: 3.4 Gal. (13.0 lit) Coolant Pump: 0.16 HP (0.12 kW) Coolant Pump Capacity: 10-1/2 Gal. (40 lit) Material Pass Line Height: 32" (815mm) Machine Weight: 9149lbs (4150 kg) Dimensions W x L x H: 130 x 232 x 85" (3300x4880x2150mm)
