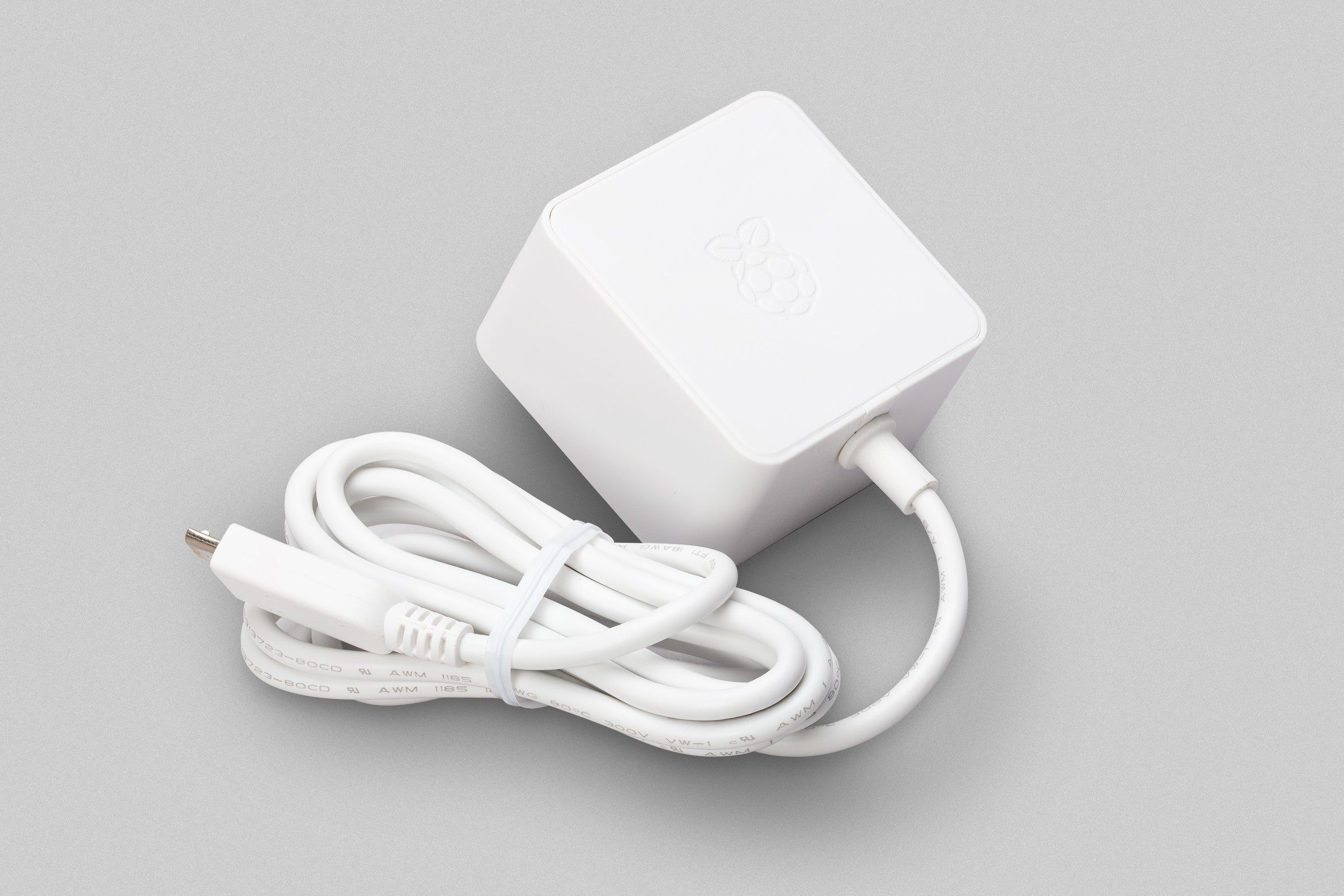

Raspberry Pi 12.5W Micro USB Power Supply

$8.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Chicago Electronic Distributors

View Store

Chicago Electronics Distributors has stopped accepting orders. This product might be available at PiShop.us. Please check this blog post about our recent team merger! The official and recommended micro USB power supply for all micro USB-powered Raspberry Pi computers. Recommended for Raspberry Pi Zero 2 W.  Will *not* work with the Pi 4B. Specification   Output Output voltage: +5.1 V DC Minimum load current: 0.0 A Nominal load current: 2.5 A Maximum power: 12.5 W Load regulation: ±5% Line regulation: ±2% Ripple & noise: 120 mVp-p Rise time: 100 ms maximum to regulation limits for DC outputs Turn-on delay: 3000 ms maximum at nominal input AC voltage and full load Protection: Short circuit protectionOvercurrent protection Efficiency: 80.73% minimum (output current from 100%, 75%, 50%, 25%) Output cable: 1.5 m (59") /  18 AWG Output connector: micro USB Input Voltage range: 100-240 Vac (rated)96-264 Vac (operating) Frequency: 50/60 Hz
