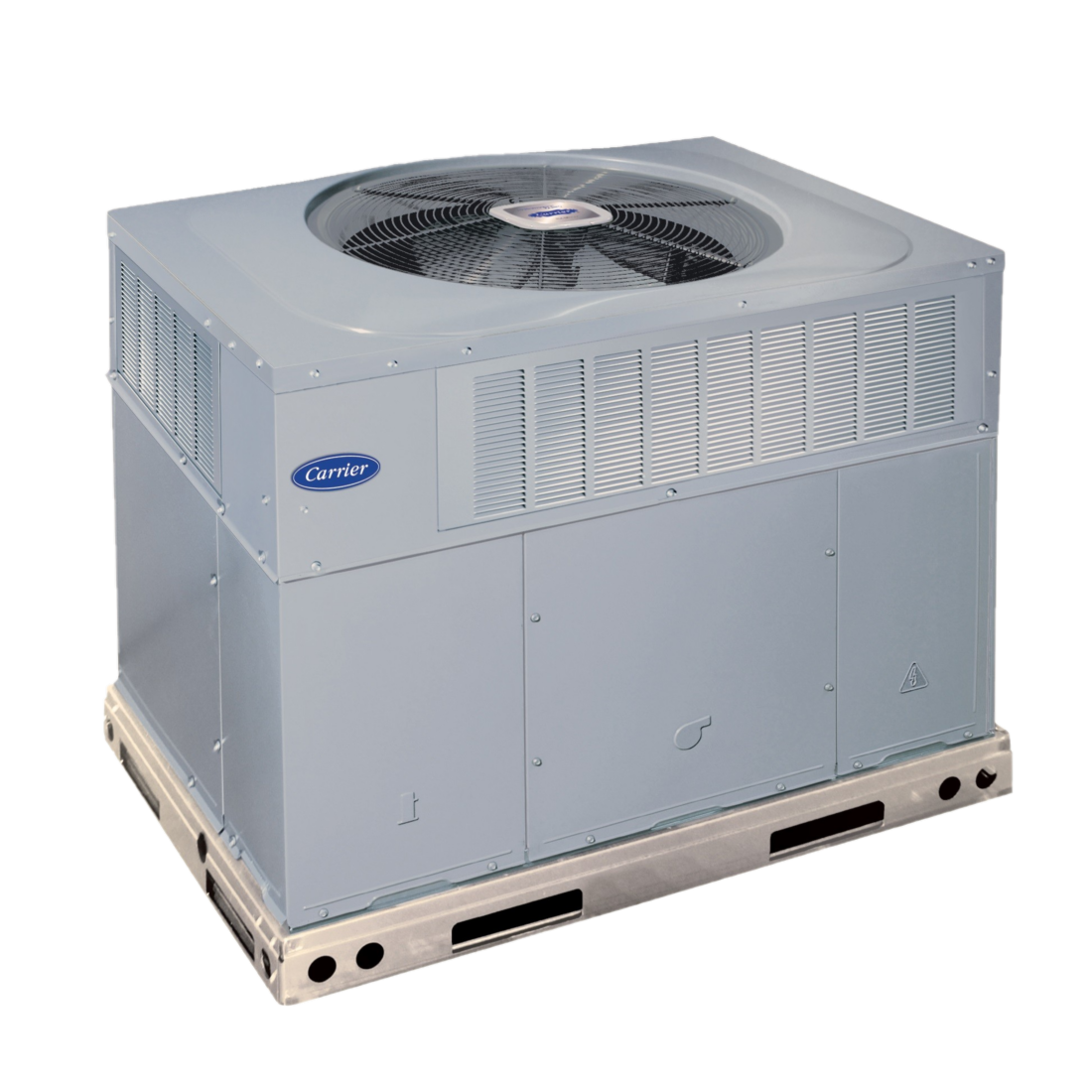

50VR-C24---3-TP

SPP PHP MID R410A 15 SEERSPP 15.0 SEER, , Multipoise HP 208/230-208/240-1-60 Single PhaseDOCUMENTS Performance Series Packaged Heat Pump and Packaged Hybrid Heat Systems 50VR, 48VR 2023 Performance Series Packaged Heat Pump and Packaged Hybrid Heat Systems SPECIFICATIONS NAME VALUE Refrigerant R-410A Blower Motor HP 1/2 Condenser Motor HP 1/12 Indoor Fan Motor FLA 4.1 Outdoor Fan Motor FLA 0.6 Maximum COP 3.9 Nominal COP 3.9 Maximum EER 12 Maximum Heat Efficiency HSPF 8.2 Nominal EER 12 Nominal Heat Efficiency HSPF 8.2 Nominal SEER 15 Maximum Circuit Breaker 30 Maximum Voltage 253 Minimum Voltage 197 Compressor RLA 11.7 Frequency 60 LRA 58.3 MCA 19.3 Phase Single Maximum Cooling Capacity 22800 Nominal Cooling Capacity 22800 Maximum Heating Capacity 23400 Nominal Heating Capacity 23400 Chassis G-Chassis SPP Type HP
