Audi 4.0t v8 8x Individual EGT Sensors - Dyno Spectrum DS1 CANBus Interface

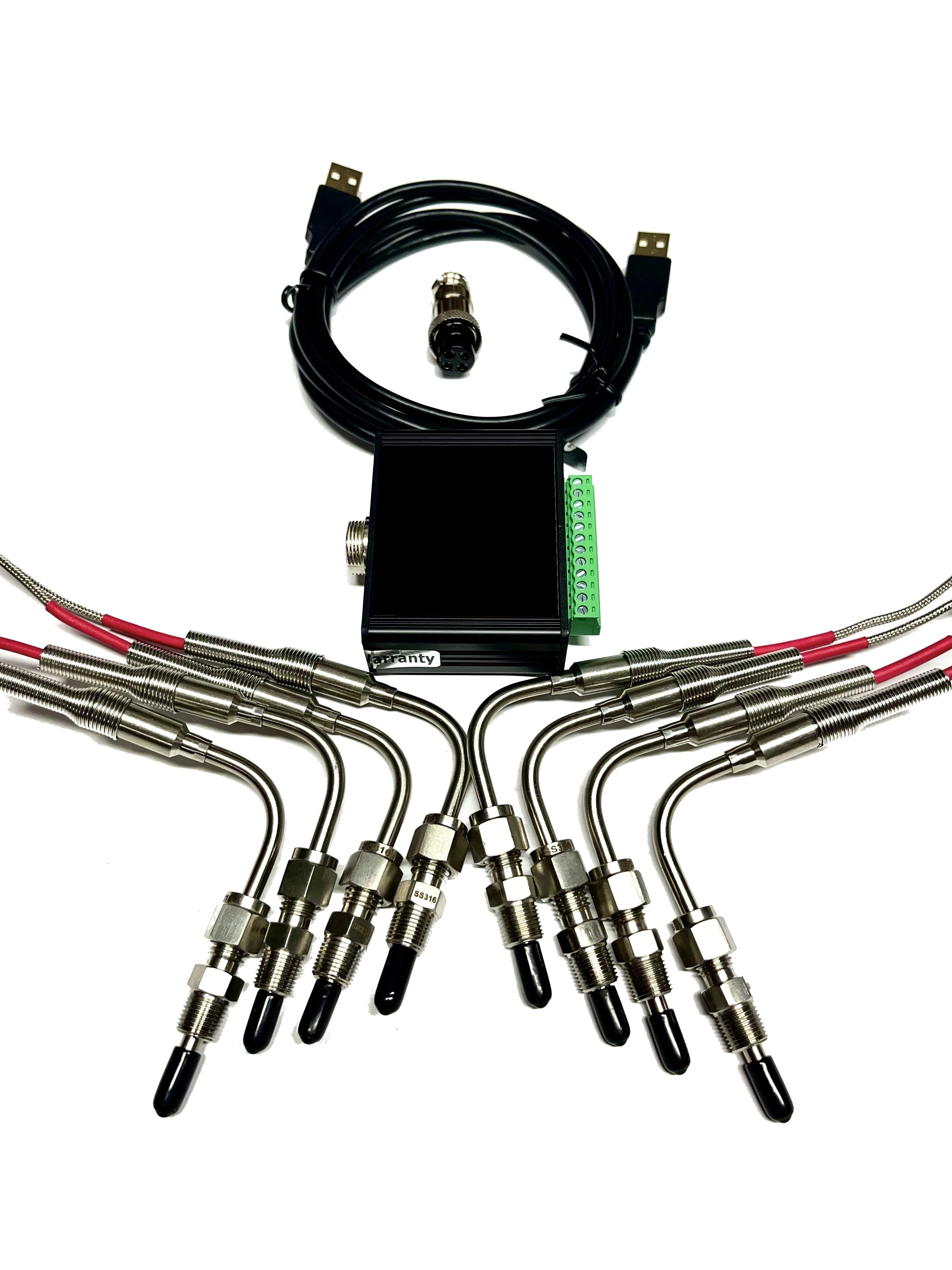

Audi 4.0t v8 8x Individual EGT Sensors - DS1 CANBus Interface This module will come PRE-CONFIGURED for integration into your factory Audi / Lamborghini CANBus system in your DS1-based ECU. Just add Power/Ground + CanHI/CanLOW and EGT inputs will be automatically logged in custom inputs. DS1  v8 Models include 1 EGT to CANBus module and 8 K-type thermocouples The EGT to CANBus module collects input signals from 8 EGT probes (K-Type thermocouples), converts the probe voltage into a numerical temperature figure and sends the appropriate data via CANBus  Extreme Duty 150ms 1/4" EGT sensors are available on request. Using DS1 Tuning software it is possible to trim each cylinder fuel amount based on EGT temperatures readings. 8 High Quality Made in the USA K-type Thermocouples EGT to CANBus module for 8 EGT inputs to ECU/ECM via CANBus Cold junction compensation 0-1250C input range USB port for PC connection Client software for configuration and direct DS1 integration into logs and custom
