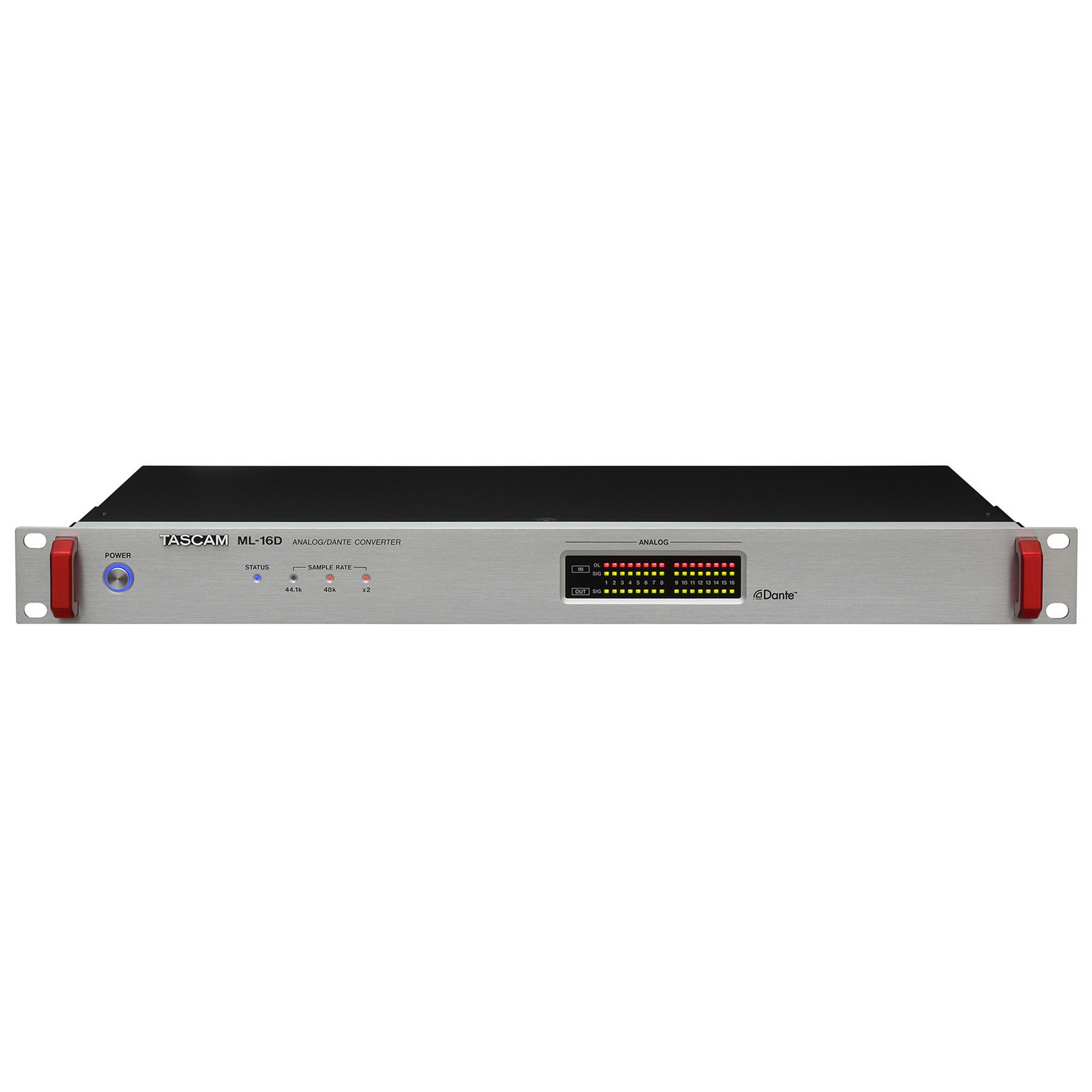

Tascam ML-16D 16-Channel Analog/Dante Converter

$1,999.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

AVLGEAR

View Store

Tascam ML-16D 16-Channel Analog/Dante Converter The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream. Key Features Dante focused interface for connection of external audio into or out of a Dante audio network 16 channel analog line input and 16 analog line outputs (48k/96kHz) using four D-Sub connectors Up to 96kHz/24-bit quality Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals Reference level dip switches for selectable DBu level metering LED display for signal level and overload per input/output channel Firmware updatable via Dante port Equipped with D-sub 25-pin connectors as line input/output connectors 1U rack mount size Technical Specifications Formats Sampling frequency 44.1k / 48k / 88.2k / 96k Hz Quantization bit rate 16 / 24-bit Analog Inputs/Outputs LINE INPUTS Connector D-sub 25pin female x 2 Locking screws No.4-40 UNC (inch type) Nominal input levels +4dBu, +6dBu (only when maximum input level is +15dBu) Maximum input levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu (set by REF. LEVEL switches) Input impedance 10kohms or higher LINE OUTPUTS Connector D-sub 25pin female x 2 Connector No.4-40 UNC (inch type) Output impedance 200OHMS or lower Applicable load impedance 2kOHMS or higher Nominal output levels +4dBu, +6dBu (only when maximum output level is +15dBu) Maximum output levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu (set by REF. LEVEL switches) PRIMARY/SECONDARY Connector RJ-45 x 2 Transmission protocol Dante Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab) Cables Category 5e or faster STP cables Power AC 100 - 240V, 50/60Hz Power consumption 14W Dimensions (WxHxD) 19.0" x 1.77" x 11.96" / 483 x 45 x 303.8 mm Weight 7.3 lbs. / 3.3 kg
