PXM PX295 PxArt DMX Splitter and Amplifier for Busbar

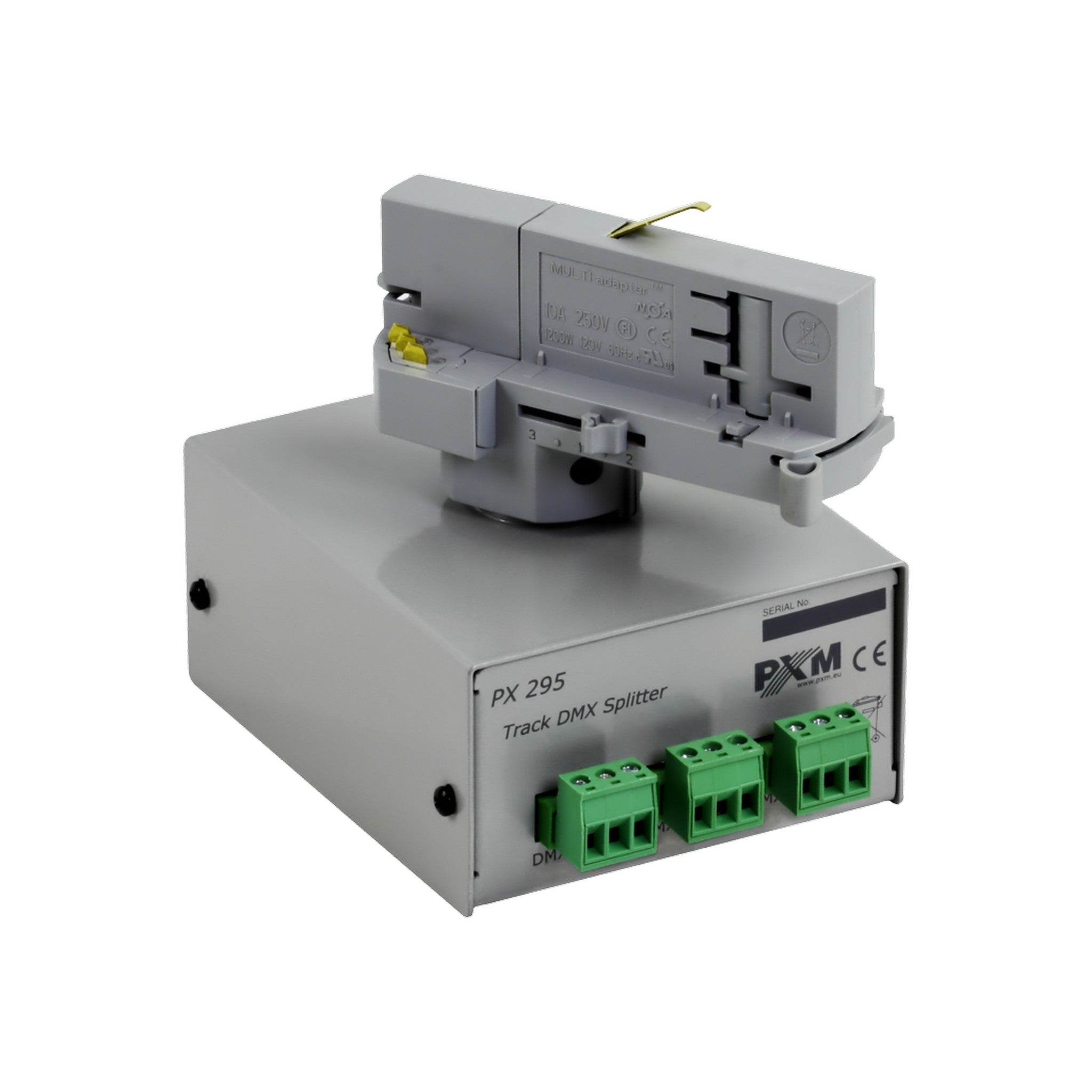

PXM PX295 PxArt DMX Splitter and Amplifier for Busbar Enhance Your DMX System with a DMX Splitter Creating complex branching within a DMX system can be challenging, especially when you have a large number of receivers to connect in series. However, with the DMX splitter, you can easily create branching paths. If you're using T-Feed (PY636 and PY637) or X-feed (PY638) modules to create branching tracks, you'll need a PX295 splitter. The PX295 DMX signal splitter is specifically designed for the GLOBALtrac control system. It enables you to divide the input DMX-512 signal into three separate lines. To prevent any disruption in the GLOBALtrac rail, it's recommended to use a splitter with more than 20 receivers (such as the PX261) on a single DMX line. Each individual track output is galvanically isolated from the input and each other, and accordingly strengthened to ensure the entire system operates correctly. The splitter comes in a housing with an adapter for easy mounting to the GLOBALtrac control rail. It is powered by 230V and DMX-512 control. Key Features The PX295 is a PxArt DMX Splitter, designed to manage complex DMX systems' branching. Facilitates connectivity for a large number of receivers in series. Assists in creating track branching when modules T-Feed (PY636 and PY637) or X-feed (PY638) are used. Divides input DMX-512 signal into three distinct lines for GLOBALtrac control systems. Recommended for systems with over 20 receivers on a single DMX line. Assures galvanic isolation of individual track outputs from input and other outputs. Provides reinforced signal strength for efficient operation of the entire system. Technical Specifications DMX IN/OUT channels 512/512 DMX IN/OUT lines 1/3 DMX lines connectors terminal blocks Power Supply 230 V AC (directly from GLOBALtrac control) Weight 0.5 kg Dimensions Width 90 mm Height 50 mm Overall Height 106 (with adapter) Depth 122 mm
