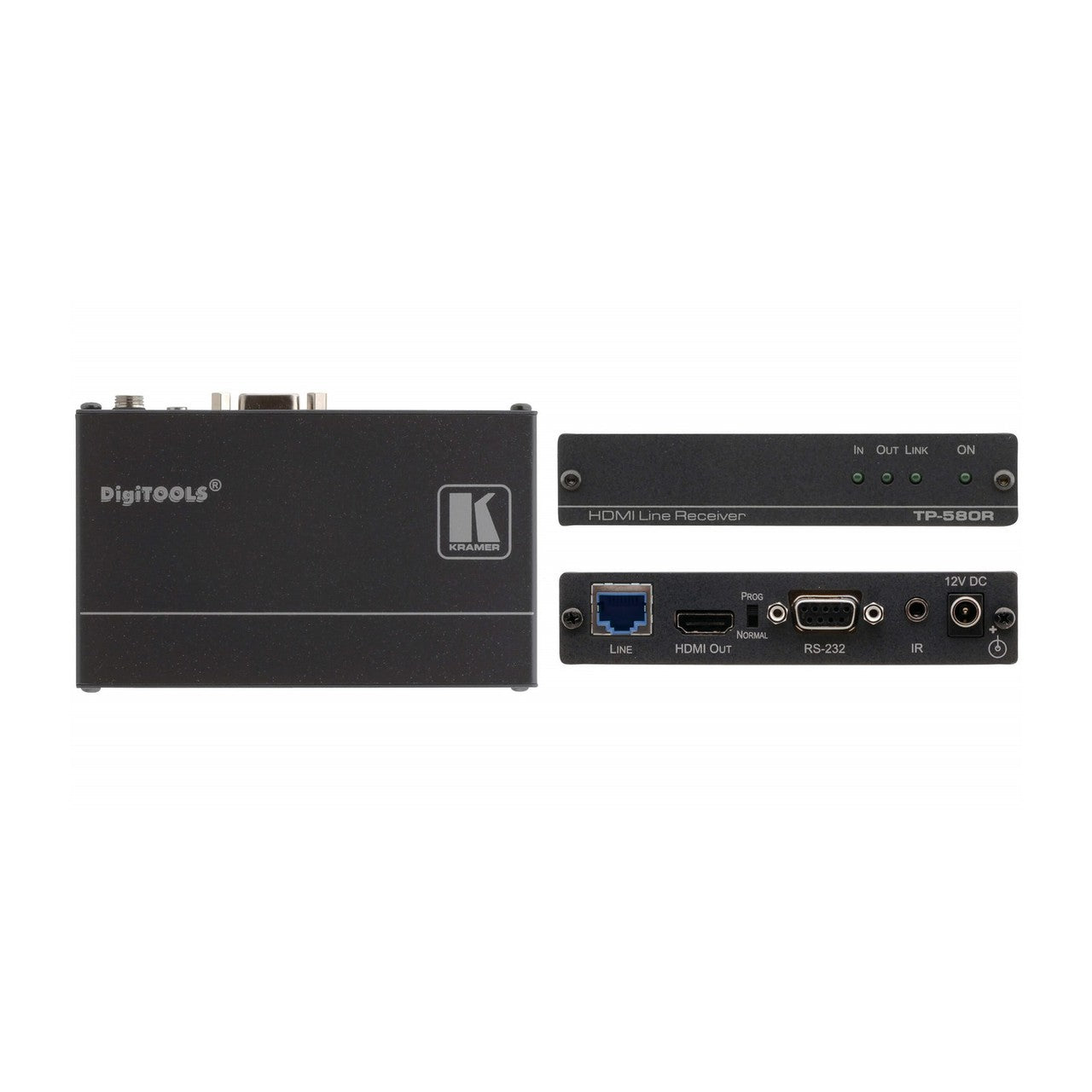

Kramer TP-580R 4K UHD HDMI IP over Twisted Pair HDBaseT Receiver

Kramer TP-580R 4K UHD HDMI IP over Twisted Pair HDBaseT Receiver The TP-580R isa 4K UHD, twisted pair receiver for HDMI, bidirectional RS-232 and IR signals. It'supports resolutions up to 4K@60 UHD (4:2:0). The TP-580T converts HDMI, RS-232, and IR signals into a twisted pair signal that it transmits to a TP-580R receiver. The TP-580R converts the twisted pair signal back into HDMI, bidirectional RS-232 and IR signals. Key Features Resolution Support. - Up to 4K@60 UHD (4:2:0) Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) HDTV Compatible HDCP Compliance HDBaseT Technology HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC 3D Pass-Through EDID PassThru - Passes EDID signals between the source and display Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit System Range - 70m (230ft) @1080p, 40m (130ft) @4K Technical Specifications Inputs 1 twisted pair RJ-45 connector Outputs 1 HDMI connector Ports 1 IR on a 3.5mm mini jack 1 RS-232 on a 9-pin D-sub connector Bandwidth 10.2Gbps (3.4Gbps per graphic channel) RS-232 Baud Rate 115200 Compliance WITH HDMI Standard Supports HDMI and HDCP Power Consumption 12V DC 430mA Operating Temperature 0 deg to 40 deg C (32 deg to 104 deg F) Storage Temperature -40 deg to +70 deg C (-40 deg to 158 deg F) Humidity 10% to 90% RHL non-condensing Included Accessories 2 power supplies Options RK-T2B 19” rack mount Kramer external IR sensor (P/N: 95-0104050) Kramer IR emitter cable (P/N: C-A35/IRE-10) Kramer BC-HDKat6a cable Product Dimension 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H Product Weight 0.2kg (0.4lbs) approx Shipping Dimension 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H Shipping Weight 0.7kg (1.6lbs) approx
