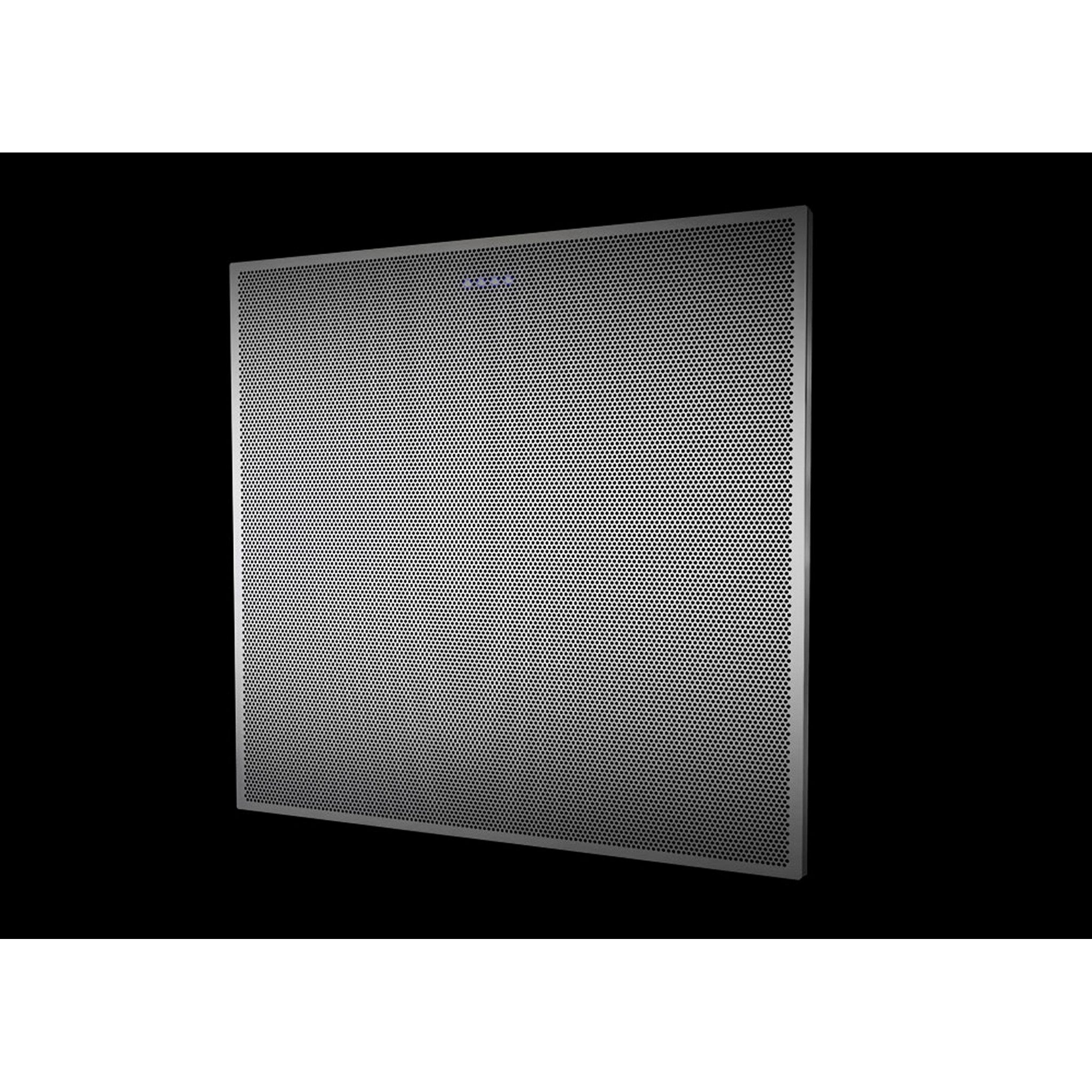

ClearOne BMA 360D Ceiling Tile Dante Array Microphone

ClearOne BMA 360D Ceiling Tile Dante Array Microphone The BMA 360D with Dante audio is the microphone array ceiling tile that incorporates the world’s most advanced technology and works with any Dante enabled DSP mixer. Choose any DSP mixer that has Dante audio and the BMA 360D pairs perfectly and delivers unrivaled audio performance. The BMA 360D incorporates the industry’s only ultra-wideband, frequency invariant beamforming mic array technology with uniform gain response across all frequency bands. FiBeam technology gives users the ultimate in natural and full fidelity audio across all beams and within a single beam. Deep Sidelobe Beamforming, DsBeam, provides unparalleled sidelobe depth, below -40 dB, resulting in superior rejection of reverb and noise in difficult spaces for unrivaled superb audio clarity and intelligibility. Pure unprocessed beam audio is delivered on individual Dante transmit channels-one channel for each beam. A smart-switched output is delivered on a separate Dante transmit channel which provides the best selection of talkers and provides ClearOne’s full suite of audio enhancements including echo cancellation, noise cancellation, and level control. Convenient preset beam patterns for common room layouts or custom beams patterns for unique floorplans, combined with adaptive steering (think of it as smart switching), provides impeccable coverage of every conference participant. Individual Dante receives channels drive built-in, robust power amplifiers. The amplifiers are configurable as 4 x 15 Watt or 2 x 30 Watt and provide flexibility for driving loudspeakers. Deep Sidelobe Beamforming, DsBeam, provides unparalleled sidelobe depth, below -40 dB, resulting in superior rejection of reverb and noise, even in difficult spaces, for superb clarity and intelligibility. The industry’s only ultra-wideband, frequency invariant beamforming mic array technology with uniform gain response across all frequency bands. With FiBeam and DsBeam technology, participants experience natural and full-fidelity audio across all beams and within a single beam. Due to the exceptional accuracy of the beamforming and adaptive steering technology, voice lift and camera tracking functions have remarkable performance on any capable attached DSP mixer. Supports two different ceiling grid types: 24 in and 600 mm. A VESA-mount hole pattern provides support for pole mounting. Hard-ceiling mount adapter kits are also available. Key Features Convenient ceiling-tile form factor, drops easily into standard ceiling-tile grid systems Three sizes available to fit US and international ceiling-grid tile sizes Flexible, scalable, and cost-effective, built-in processing eliminates the need for per-beam processing in a DSP mixer, requiring fewer DSP mixer resources Daisy-chain ceiling tiles via P-Link for larger conference set-ups, for simpler wiring and longer distances compared to networked “home run” connections Long distance P-Link mode allows 650' (200m) between tiles for a total cable reach of 1950' (600m) Most advanced acoustic echo cancellation, noise cancellation Technical Specifications BEAMFORMING FEATURES True Frequency Invariant Beamformer: Gain Response is unvarying across frequency Beam widths: 35°, 45° and 55° with Frequency Invariance Beamforming Range: 100 Hz to 20 KHz Deep Sidelobes down to 45 dB of Depth Beam Pointing Accuracy of 0.2 dB Dynamic Range: 20 Hz to 20 kHz, > 70 dB Number of Beams: Up to 12 Room Patterns: Full Circle/Square, Rectangular, Semi-Circle/Classroom, Custom Beams Coverage Sizes: Up to 600 square feet/58 square meters Ceiling Height: Configurable with CONSOLE AI Lite from 7 ft to 20 ft. AMPLIFIER OUTPUT Type: 5.08 mm Black Header, Phoenix type Euroblock Audio: 4 channels Output Power: 4 x 15 W Max, 8 Ω load, or 2 x 30 W, 4 Ω load, Bridged Frequency Response: 20 Hz – 22 kHz, +/- 0.5 dB CONFIGURATION Acoustic Echo Cancellation (AEC) on/off Noise Cancellation (NC) on/off. Range: 6 to 25 dB depth. Automatic Level Control (ALC) on/off Automatic Gain Control (AGC) Gain adjust Mute on/off SOFTWARE CONSOLE AI Lite DIMENSION & WEIGHT 24 in Product Dimension: 23.7 x 23.7 x 2.1” (602.5 x 602.5 x 54.1 mm) Product Weight: 11.1 lbs (5.0 Kg) Shipping Weight: 14.2 lbs (6.4 Kg) 600 mm Product Dimension: 23.3 x 23.3 x 2.1” (592.5 x 592.5 x 54.1 mm) Product Weight: 9 lbs (4 Kg) Shipping Weight: 12.8 lbs (5.8 Kg) MOUNTING Ceiling mount: 24 in or 600 mm drop-ceiling grid VESA-mount ready, 100 mm hole pattern, M4 x 10 mm PoE ++ PORT Port Type: RJ-45 PoE++ power Power on all pairs 56 V 90 W IEEE 802.3 bt Compliant Devices or equivalent, Mode A and B, Midspan Cable: solid core, 23 AWG, factory terminated Cat 6 PoE REQUIREMENTS No speakers: 36 W PoE Speakers: Requires 56 V 90 W IEEE 802.3 bt PoE ++ POWER AND THERMAL Power Source: PoE injector or equivalent Power Consumption 100-240 VAC, 50/60 Hz 23 Watt typical without speaker amp 55 W at 1/3 power x 4 @ 1 kHz Thermal: 270 BTU/hr at max power Operating Temperature: 14 Degrees F/-10 Degrees C to 104 Degrees F/40 Degrees C ambient temperature ACCESSORIES 910-3200-202 PoE Power supply kit, 36 W 910-3200-209 PoE Power supply kit, 90 W MOUNTS FOR NON-TILE CEILINGS 910-3200-210 BMA 360 Surface-Mount Kit 24 in 910-3200-210-I BMA 360 Surface-Mount Kit 600 mm 910-3200-212 BMA 360 Recessed-Mount Kit 24 in 910-3200-212-I BMA 360 Recessed-Mount Kit 600 mm PART NUMBERS 910-3200-208-D BMA 360D 910-3200-208-D-I BMA 360D INTERNATIONAL
