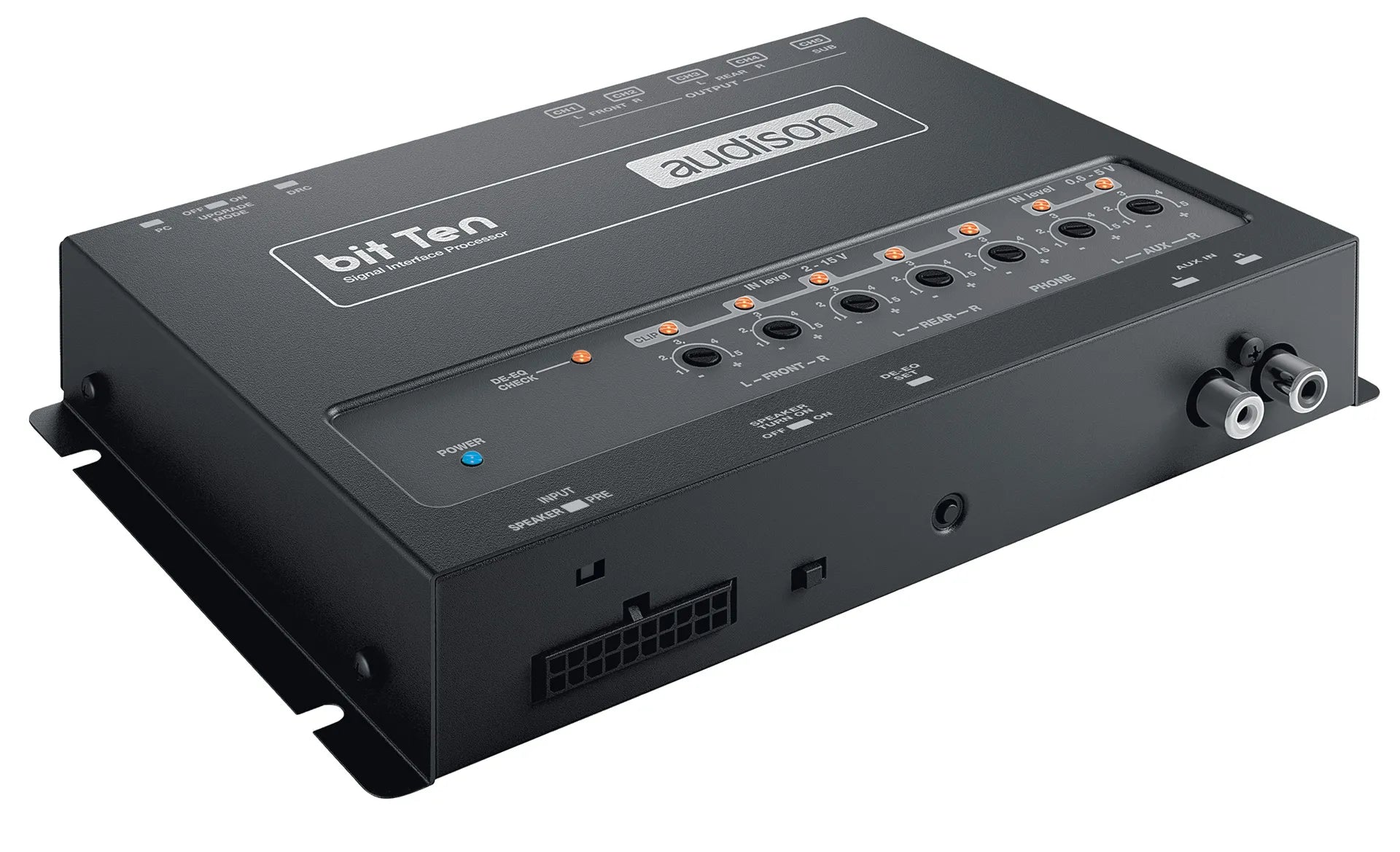

Audison bit Ten DSP | 4 input channels | 5 output channels | 24 bit / 48 kHz fixed point processing
shopaudioxtc.com
Electronics / Audio

Audison bit Ten DSP | 4 input channels | 5 output channels | 24 bit / 48 kHz fixed point processing

$400.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Audio XTC

View Store

Features: AMPLIFIER TECH DATANominal power supply voltage / Fuse    11 ÷ 15 VDCChannels    5Sample Rate    24 bit / 48 kHzHi Level Inputs    4Low Level Inputs    4Digital Inputs    0Processing Method    Fixed pointIdling current    0.4 ASwitched off without DRC MP    2.5 mASwitched off with DRC MP    4 mARemote IN    7 ÷ 15 VDC (1.3 mA)Remote OUT    12 VDC (130 mA)SIGNAL STAGEDistortion - THD @ 1 kHz, 1 VRMS Output    0.005 %Bandwidth @ -3 dB    10 ÷ 22k HzS/N ratio @ A weighted, 4 V Output, 2 V MASTER input    96 dBAS/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input    95 dBAChannel Separation @ 1 kHz    85 dBInput sensitivity AUX    0.6 ÷ 5 V RMSInput impedance Pre In    15 kΩInput impedance Speaker In / AUX    2,2 kΩMax Output Level 0.1% THD    4 V RMSINPUT STAGELow level (Pre)    AUX INHigh Level (Speaker In)    FL - FR - RL - RR - PHONE INOUTPUT STAGELow level (Pre)    FRONT L/R, REAR L/R, SUBCONNECTIONFrom / To Personal Computer    1 x USB / B (1.1/2.0)CROSSOVERFilter type    Full / High Pass/ Low Pass/ Band PassFilter mode and slope    Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dBCrossover Frequency    68 steps @ 20 ÷20k HzPhase control    0° ÷ 180°TIME ALIGNMENTDistance    0 ÷ 510 cm / 0 ÷ 200.8 in.Delay    0 ÷ 15 msStep    0,08 ms; 2,8 cm / 1.1 in.
