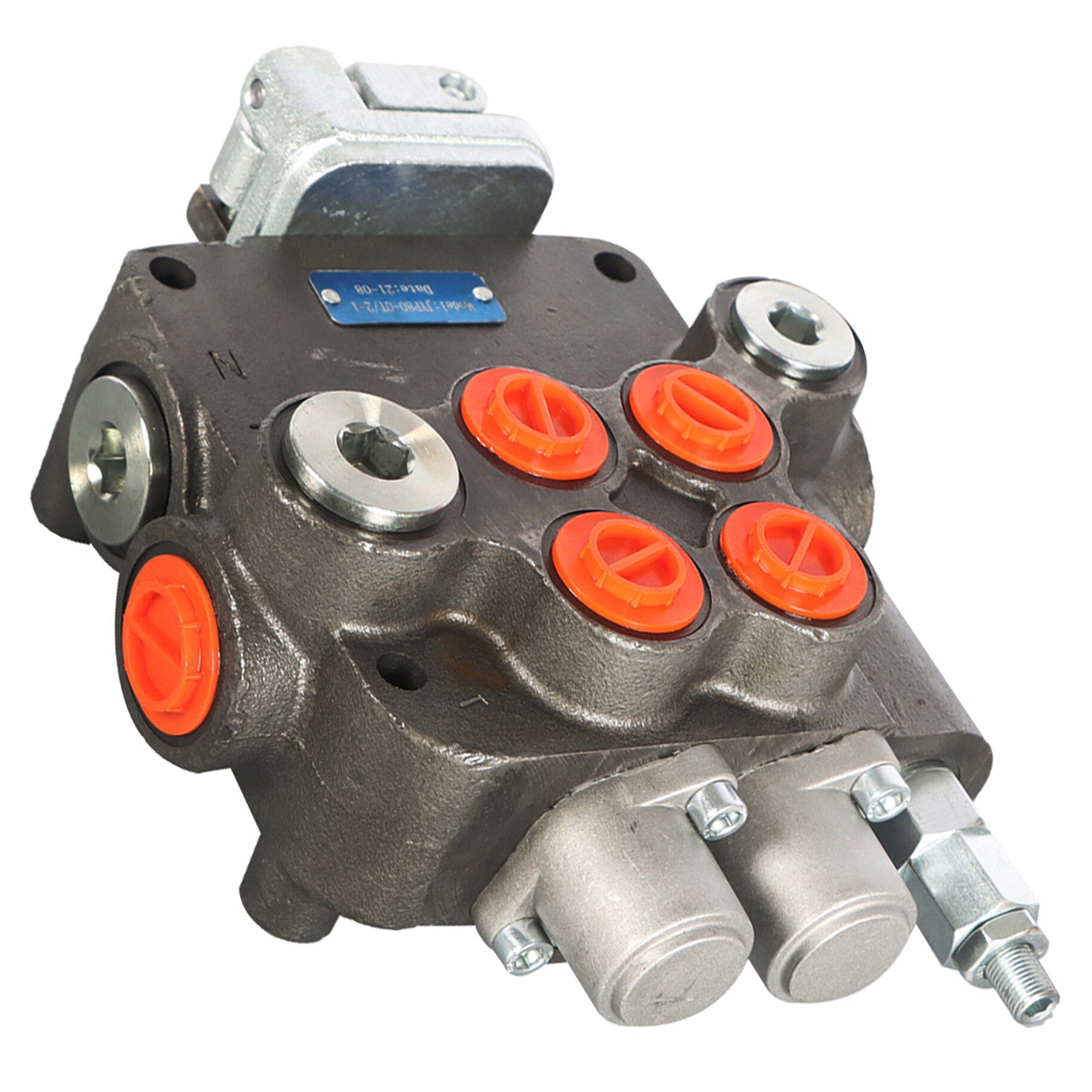

findmall Hydraulic Directional Control Valve for Tractor Loader w/Joystick 2 Spool 21GPM

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. Common Uses: Operate hydraulic cylinders (Double-Acting or Single-Acting)Operate hydraulic motors ("D" Spool Required)Install rear remotes on a tractor Benefits: 2 Spool valve with compact design allows for installations in tight areasAll spools are standard double acting with spring return to neutral position which are ideal for double acting cylindersUsed for open center systems (Pump to Tank Flow) - closed center option availableAnti-drop load checks on each spoolPrecision ground and hard chrome-plated spools assure a long lifeHigh-tensile strength cast iron monoblock constructionSAE O-Ring ports ensure solid seal and prevent blockagesCapable of Closed Center or Power Beyond (conversion plug required)Vertical or horizontal handle mountAdjustable Relief Valve Range:  1500 to 3625 PSIUsed as motor or single-acting spool possible (#10 SAE port plug required) Features: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIFlow Rating: 21 GPM (80 l/min)A & B Work Ports:  SAE10(7/8-14) ThreadInlet Port: SAE10(7/8-14) ThreadOutlet Port: SAE12(1-1/16) Thread3 – 5/16” Mounting HolesP/A/B：SAE10(7/8-14)T/N：SAE12(1-1/16)
